Profiles, Wearstrips & Guides
Engineered for durability and performance, profiles, wearstrips, and vee guides provide precise belt tracking, reduced friction, and extended service life. Designed to ensure smooth operation and reliable alignment, they enhance belt performance, minimize wear, and help reduce maintenance downtime across various industrial applications.
B1 PU – Solid
Mass 20 g/m
Min. Pulley Carrying Side 50mm
Min. Pulley Sliding Side 205mm
Hardness (Shore A) 75
B1 PVC – Solid
Mass 20 g/m
Min. Pulley Carrying Side 50mm
Min. Pulley Sliding Side 20mm
Hardness (Shore A) 65
B2 PU – Solid
Mass 21 g/m
Min. Pulley Carrying Side 60mm
Min. Pulley Sliding Side 30mm
Hardness (Shore A) 75
B2 PU – Notched
Mass 21 g/m
Min. Pulley Carrying Side 50mm
Min. Pulley Sliding Side 20mm
Hardness (Shore A) 75
B3 PVC – Solid
Mass 21 g/m
Min. Pulley Carrying Side 60mm
Min. Pulley Sliding Side 30mm
Hardness (Shore A) 65
B3 PVC – Notched
Mass 21 g/m
Min. Pulley Carrying Side 50mm
Min. Pulley Sliding Side 20mm
Hardness (Shore A) 65
B4 PU – Solid
Mass 30 g/m
Min. Pulley Carrying Side 70mm
Min. Pulley Sliding Side 30mm
Hardness (Shore A) 75
B4 PU – Notched
Mass 30 g/m
Min. Pulley Carrying Side 60mm
Min. Pulley Sliding Side 25mm
Hardness (Shore A) 75
B4 PVC – Solid
Mass 30 g/m
Min. Pulley Carrying Side 70mm
Min. Pulley Sliding Side 30mm
Hardness (Shore A) 65
B4 PVC – Notched
Mass 30 g/m
Min. Pulley Carrying Side 60mm
Min. Pulley Sliding Side 25mm
Hardness (Shore A) 65
B5 PU – Solid
Mass 60 g/m
Min. Pulley Carrying Side 70mm
Min. Pulley Sliding Side 60mm
Hardness (Shore A) 75
B5 PU – Notched
Mass 50 g/m
Min. Pulley Carrying Side 50mm
Min. Pulley Sliding Side 40mm
Hardness (Shore A) 75
B5 PVC – Solid
Mass 60 g/m
Min. Pulley Carrying Side 70mm
Min. Pulley Sliding Side 60mm
Hardness (Shore A) 65
B5 PVC – Notched
Mass 50 g/m
Min. Pulley Carrying Side 50mm
Min. Pulley Sliding Side 45mm
Hardness (Shore A) 65
B6 PU – Solid
Mass 110 g/m
Min. Pulley Carrying Side 100mm
Min. Pulley Sliding Side 80mm
Hardness (Shore A) 75
B6 PU – Notched
Mass 90 g/m
Min. Pulley Carrying Side 90mm
Min. Pulley Sliding Side 70mm
Hardness (Shore A) 75
B6 PVC – Solid
Mass 110 g/m
Min. Pulley Carrying Side 100mm
Min. Pulley Sliding Side 80mm
Hardness (Shore A) 65
B6 PVC – Notched
Mass 90 g/m
Min. Pulley Carrying Side 90mm
Min. Pulley Sliding Side 70mm
Hardness (Shore A) 65
B7 PU – Solid
Mass 185 g/m
Min. Pulley Carrying Side 120mm
Min. Pulley Sliding Side 100mm
Hardness (Shore A) 75
B7 PU – Notched
Mass 160 g/m
Min. Pulley Carrying Side 110mm
Min. Pulley Sliding Side 90mm
Hardness (Shore A) 75
B7 PVC – Solid
Mass 185 g/m
Min. Pulley Carrying Side 120mm
Min. Pulley Sliding Side 100mm
Hardness (Shore A) 65
B7 PVC – Notched
Mass 160 g/m
Min. Pulley Carrying Side 110mm
Min. Pulley Sliding Side 90mm
Hardness (Shore A) 65
B8 22 PU – Solid
Mass 185 g/m
Min. Pulley Carrying Side 120mm
Min. Pulley Sliding Side 100mm
Hardness (Shore A) 75
B8 22 PU – Notched
Mass 160 g/m
Min. Pulley Carrying Side 110mm
Min. Pulley Sliding Side 90mm
Hardness (Shore A) 75
B8 22 PVC – Solid
Mass 185 g/m
Min. Pulley Carrying Side 180mm
Min. Pulley Sliding Side 150mm
Hardness (Shore A) 65
B8 22 PVC – Notched
Mass 160 g/m
Min. Pulley Carrying Side 170mm
Min. Pulley Sliding Side 140mm
Hardness (Shore A) 65
B9 PU – Solid
Mass 100 g/m
Min. Pulley Carrying Side 90mm
Min. Pulley Sliding Side 70mm
Hardness (Shore A) 75
B9 PU – Notched
Mass 80 g/m
Min. Pulley Carrying Side 80mm
Min. Pulley Sliding Side 60mm
Hardness (Shore A) 75
B9 PVC – Solid
Mass 100 g/m
Min. Pulley Carrying Side 90mm
Min. Pulley Sliding Side 70mm
Hardness (Shore A) 65
B10 PVC – Notched
Mass 80 g/m
Min. Pulley Carrying Side 800mm
Min. Pulley Sliding Side 600mm
Hardness (Shore A) 65
B11 PU
Mass 80 g/m
Min. Pulley Carrying Side 80mm
Min. Pulley Sliding Side 80mm
Hardness (Shore A) 75
B12 PVC
Mass 80 g/m
Min. Pulley Carrying Side 80mm
Min. Pulley Sliding Side 80mm
Hardness (Shore A) 75
B13 PU
Mass 380 g/m
Min. Pulley Carring Side 180mm
Min. Pulley Sliding Side 180mm
Hardness (Shore A) 75
B14 PVC
Mass 380 g/m
Min. Pulley Carring Side 180mm
Min. Pulley Sliding Side 180mm
Hardness (Shore A) 75
BCLT 001
Base Width (in.) 2-1/8
Minimum Pulley Diameter (in.) 6
Thickness (in.) 0.375
Weight (lbs) 1.20 per ft
Height (in.) 3
BCLT 002
Base Width (in.) 2-1/8
Minimum Pulley Diameter (in.) 6
Thickness (in.) 0.25
Weight (lbs) 0.57 per ft
Height (in.) 1-1/2

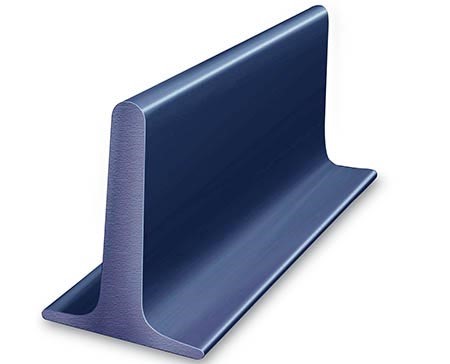

BCLT 003
Base Width (in.) 2-1/8
Minimum Pulley Diameter (in.) 6
Thickness (in.) 0.25
Weight (lbs) 0.45 per ft
Height (in.) 1
BCLT 004
Base Width (in.) 2-1/8
Minimum Pulley Diameter (in.) 6
Thickness (in.) 0.25
Weight (lbs) 0.62 per ft
Height (in.) 2
BCLT 005
Base Width (in.) 2-1/8
Minimum Pulley Diameter (in.) 6
Thickness (in.) 0.25
Weight (lbs) 0.57 per ft
Height (in.) 1-1/2
BCLT 006
Base Width (in.) 2-1/8
Minimum Pulley Diameter (in.) 6
Thickness (in.) 0.25
Weight (lbs) 0.45 per ft
Height (in.) 1
BCLT 007
Base Width (in.) 3/4
Minimum Pulley Diameter (in.) 8
Weight (lbs) 0.48 per ft
Height (in.) 1-1/2
BCLT 008
Base Width (in.) 3/4
Minimum Pulley Diameter (in.) 6
Weight (lbs) 0.24 per ft
Height (in.) 1
